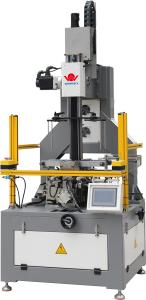

Automatic Servo Rigid Box Forming Machine
Servo Rigid Box Forming Machine.pdf
Product Description
This machine is our company's latest research and development of automatic servo rigid box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.
1. Programming control: PLC programming, easy to learn.
2. Servo drive: the speed of shaping action is faster and the precision of shaping action is higher.
3. Quick mode adjustment: program memory function, faster conversion.
4. Adjustable pair of ears: left-right pair, middle seamless, small side-to-ear.
5. Two times of bubbling: adding the bubbling cylinder at the pressure box, the forming effect is better.
6. Controllable production capacity: depending on the proficiency of operation and product quality requirements.
7. Controllable folding: small side folding, in the end folding, bottom folding can be. 8. Fault alarm: Fault whistle alarm, fault screen display.
9. Emergency stop: grating protection, and touchable emergency stop switch, double protection is safer.
Techical Parameters
| Model | WM-580A |
| Box Size | Longest | 500mm |
| Shortest | 90mm |
| Widest | 400mm |
| Narrowest | 50mm |
| Highest | 120mm |
| Lowest | 12mm |
| Thickness of paperboard | Range | 1-3mm |
| Thickness of paper | Range | 80g-300g |
| Folding Edge Inside size | Range | 15-80mm |
| Folding Ears size | Range | 10-100mm |
| Speed | ≦20pcs/min |
| Air Pressure | 0.6-0.8MPa |
| Voltage | 220V/50HZ |
| Moter Power | 3.8KW |
| Net Weight | 1200kgs |
| Machine Overall Dimension | L110*W120*H280cm |
Work Shop Image
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
