Automatic Die Cutting Machine For Industrial Paperboard
WM-P9060_P1180 Automatic Die-cutting Machine catal...
Product Description :

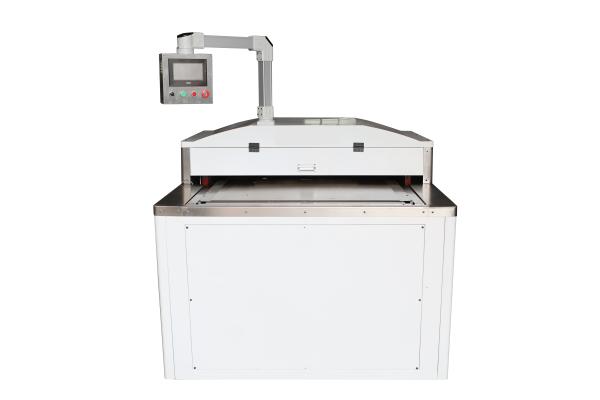

The Automatic Die-cutting Machine is used for the die-cutting of industrial paperboard, double gray paperboard, cardboard, coated paper, special paper, etc. the machine adopts cam swing arm structure, flat pressing mode, safe operation, PLC control system, servo motor drive and touch screen operation. Usually 900x600mm die cutting platform and 1100x800mm cross cutting platform two specifications, you can also customize the size.
Feature:
1. It is safe to feed and change paper on the platform without clamping hands. It is transported to the machine for
die cutting.
2. Environmental protection and energy saving: total power consumption 12.0kw, low noise
3. High production efficiency, 10000 pcs can be produced in 8 hours
4. When replacing the die cutter plate, pull out the platform for operation, which is simple and convenient.
Technical Parameter
| Model | WM-P9060 |
| Widest | 900mm |
| Narrowest | 100mm |
| Longest | 600mm |
| Shortest | 100mm |
| Die | 1 |
| Thickness of Paperboard | 0.22-3.0mm |
| Speed | 10-25sheets/min |
| Voltage | 380V/50HZ |
| Power | 12kw |
| Net Weight | 5000kgs |
| Machine Overall Dimension | L1.7m*W1.8m*h1.85m |
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.
Looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
