Electric And Pneumatic Semiautomatic Manual Rigid Box Corner Pasting Machine
Product Features
1. Automatic heating and temperature control system with temperature digital display function.
2. The foot switch can freely operate the electric single arm pressure closing device and has the function of delay.
3. The paper box should be turned manually when the corners are attached.
4. The length of the adhesive tape can be adjusted within 5 to 35mm when the paper or plastic adhesive tape is used.
5. This machine adopts single arm press device and thermostatic temperature control system.
6. This machine can use various hot-melt adhesive tape such as kraft paper tape and PET tape, the width is usually 19mm.other width of tape have to special to make it .
7. The length of different tape can be adjusted between 10-50mm length by once for the different boxes.
8. this machine is simple operation, fast working speed, high production efficiency, high cost performance.
Other Product Recommend
Hot Glue Tape / Plactis Tape
Technical Parameter
| Model | WM-40 |
| Min Size of box | 40*40*10mm |
| Speed | 10-40pcs/min |
| Power | 0.4kw |
| Voltage | 220V/50Hz |
| Weight | 170kg |
| Machine size | 800*500*1400mm |
Working Way

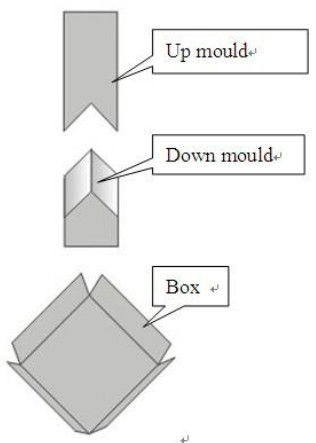

WM-40 Carton box Corner Sealing Machine include the frame part, molding part, feeding part, heating part, cover part Molding way as follows:
Work Shop Image
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
