Corner Pasting Tape / Hot Melt Tape / PVC Tape
PET Tape catalog.pdf
Product Description
Boxes Corner Hot-melt Adhesive Tape is mainly used for fixing the four corners of rigid boxes such as boutique boxes, gift boxes, mobile phone boxes, shoeboxes and so on (material: yellow kraft paper, white kraft paper, PET) and supporting (Zhongke, Hongming, Zhengrun, Fuzhong Japan, EMMECI Italy, Wellmark ,etc.) the machine is Automatic Four Corner Pasting Machine and automatic and manual Box Corner Pasting Machine. It can also improve production efficiency with good quanlity boxes
This tape is uniformly sprayed on the PET substrate in a dustless environment with high temperature hot melt adhesive. The thickness of the PET substrate is 50um and the thickness of the hot melt adhesive is 20um. The total thickness of the tape is 70um. The width of the tape is usually 19MM, but it can also cut other width tapes according to customer's requirements. The total length is about 300m. Mainly used in all kinds of carton filler machine or automatic four-corner filler machine to stick the four corners of the box. After filler filler, the carton is stable, reliable and safe. Mainly used for high quality gift boxes.
Usage method
Control the temperature between 180 centidegree to 195 centidegree. Used on automatic/semi Auto case making machine, box corner pasting machine,box four sides forming machine, automatic box wrapper, automatic rigid box making machine and so on.
Other Product Recommend
Semiautomatic Rigid Box Making Machine
Specification
| Product Name | PET Tape for pasting box corner |
| Color | Transparent |
| Glue Type | Hot melt glue |
| Applicable Fields | Printing and packaging; Gift boxes and so on |
| Equipment suited | Various stick corner machine, box making machine; four corners machine ect.. |
| Based Material | PET |
| Size | 1.9cm*300m |
| Weight | 12KG per carton |
| Specifications | 70um thickness,300 meters length,19mm width, 24 rolls per carton. |

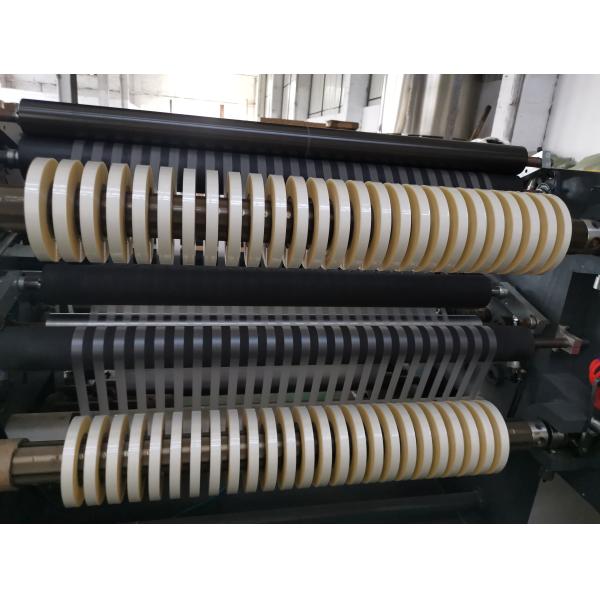

Work Shop Image
Packing and Shipping
Packing by canton boxes, then put onto the pallets for shipping.
